DESCRIPTION

Basic Info

Model NO.	FL35
Lift height	3000~5000mm
Condition	New
Engine	Mitsubishi
Transmission	Automatic
Transport Package	Nude Package
Specification	2825*1230*2170 mm
Trademark	SNSC
Origin	China(Mainland)
HS Code	8427209000
Production Capacity	12000 Units/Year

Product Description

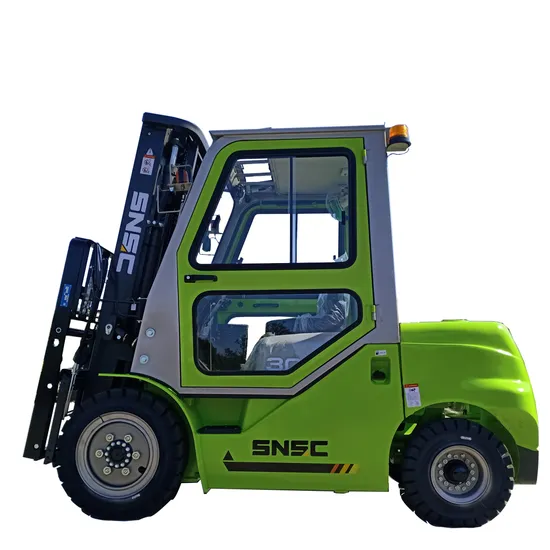

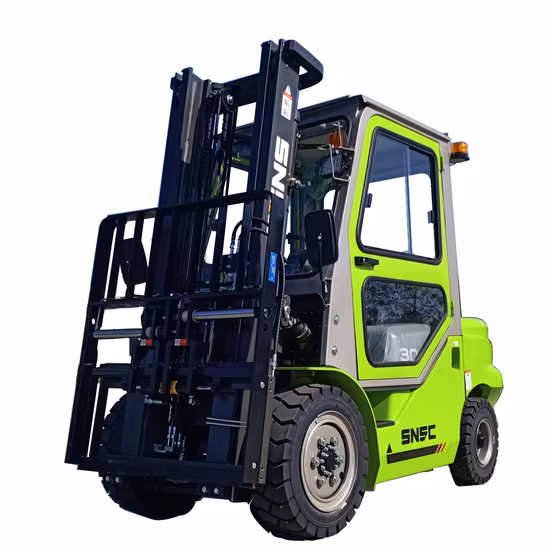

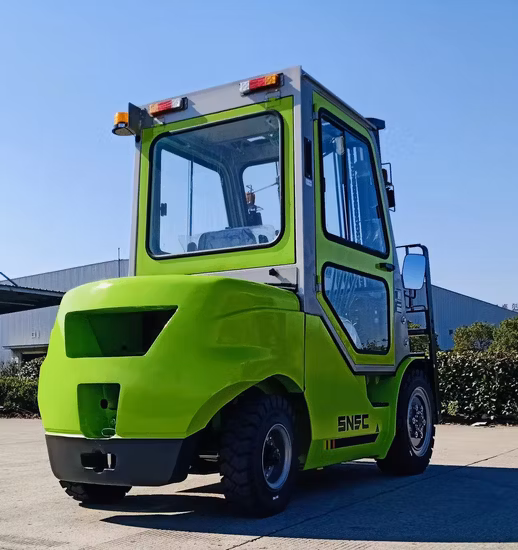

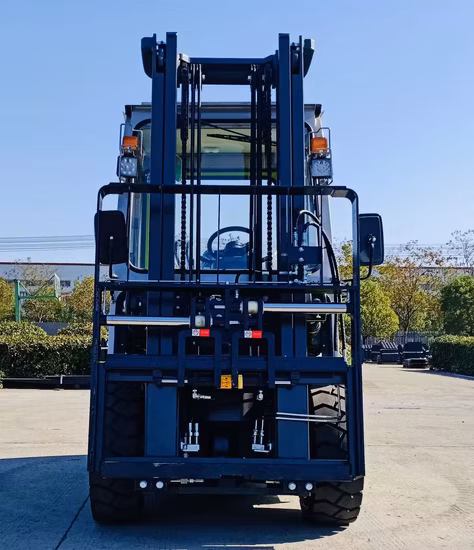

Main Features for SNSC Customized Forklift with Paper Roll Clamp/ Bale Clamp /Block Clamp

1) with powerful original Japan NISSAN K25 gasoline engine;
2) with auto electric hydraulic transmission by finger with TCM technology, just use your finger that can achieve the forklift's forward and backward;
3) with USA IMPCO converter;
4) with CE, ISO, GHOST certificates, quality is guaranteed;
5) with JAPANESE hydraulic system, like JAPAN SHIMADZU brand hydraulic pump and muti-way control valves, which can guarantee our snsc 3.5t LPG forklift's best performance;
6) with USA EATON brand steering gear, which makes our snsc forklift have longer working life;

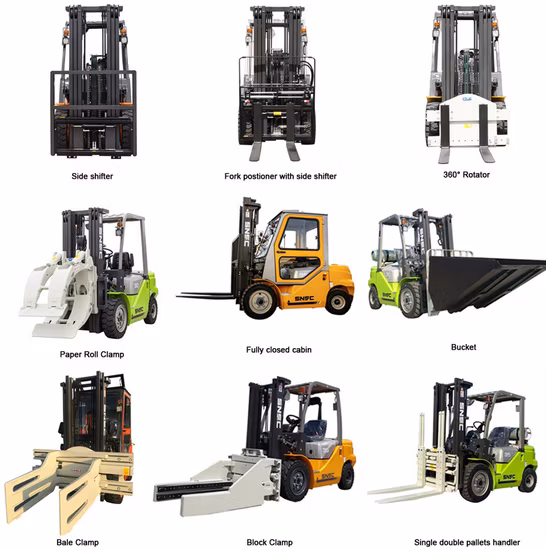

7) SNSC FL35 lpg gasoline forklift truck can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast, bale clamp, button clamp, block clamp, cabin.



Specifications of SNSC CHARIOT ELEVATEUR LPG GASOLINE 3.5 TONS FORKLIFT TRUCK

STANDARD FL35 LPG GASOLINE FORKLIFT SPECIFICATIONS
No.	Specifications				Unit	FL35
1	1	Characteristics	Power			lpg gasoline
2	2		Rated Capacity		kg	3500
3	3		Center of load		mm	500
4	4		Lifting height		mm	3000
5	5		Free lifting height		mm	145
6	6		Forks L×W×H		mm	1070×125×45
7	7		Tilt Forward/Backward		.	6/12
8	8		Min.turning radius		mm	2600
9	9		Min.ground clearance(Mast)		mm	120
10	10		Overhead guard height		mm	2170
11	11		Height from seat to overhead guard		mm	480
12	12		Front overhang		mm	545
13	13	Perf	Max.traveling speed(loaded)		km/h	20
14	14		Max.lifting speed(loaded/empty)		mm/s	470/520
15	15		Drawbar pull/Gradeability		kN/%	18/20
16	16	Dimensions	Overall length (with fork)		mm	3895
17	17		Overall width		mm	1230
18	18		Mast lowered height		mm	2095
19	19		Mast extended height		mm	4265
20	20	Chassis	Tire	Front		28×9-15-12PR
21	21			Rear		6.50-10-10PR
22	22		Wheelbase		mm	1800
23	23		Tread width	Front/Rear	mm	1000/970
24	24		Curb weight	None-load	kg	4450
25	25	Powertrain	Battery	Voltage/Capacity	V/Ah	12/90
26	26		Engine	Model		JAPAN NISSAN K25
27	27			Rated power	kw/r.p.m	37.4/2300
28	28			Rated torque	Nm/r.p.m	176.5/1600
29	29			Cylinder amount		4
30	30			Bore×Stroke	mm	89×100
31	31			Displacement		2.488
32	32		Fuel tank		L	70
33	33		Transmission		1/1 automatic transmission	1/1 automatic transmission
34	34		Working pressure		MPa	17.5

Our Factory Strenth Introduction for SNSC CHARIOT ELEVATEUR FORKLIFT TRUCK

We, SNSC fork lifter factory, are top 3 fork lifter montacargas manufactures and top 20 in the world. with 130,000 square meters production area, over 500 employees,30,000 units forklifter diesel truck production capacity per year,5000 sets export volume. We are big fork lifter manufacture not small maker. We are responsible for our customers and forklifts.

SNSC brand FL35 3.5tons lpg gasoline powered FORKLIFT TRUCK DELIVERY SOLUTIONS:
Our 3.5ton LPG GASOLINE forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 2 units 3.5tons gasforklifts;
one 40'GP container can hold 4 units 3.5ton petrol engine forklift trucks.



Related SNSC forklift products

Our SNSC forklifts have different forklift series that can meet our customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)

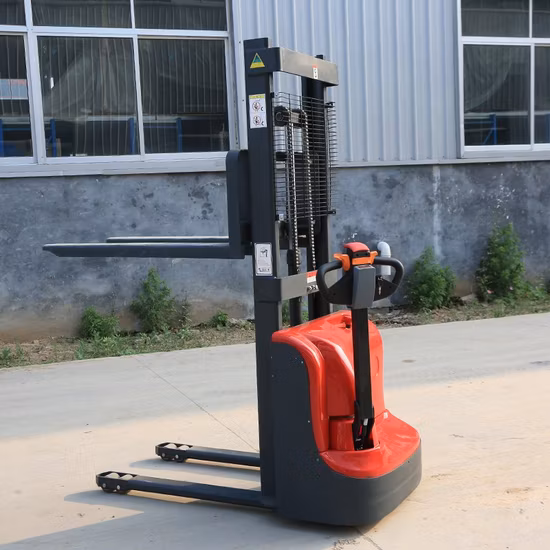

4. warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
