DESCRIPTION

Basic Info

Model NO.	FB25R
Type	Electric Forklift
Power	AC Motor
Load Capacity	1T - 5T
Fuel	Electric
Load center	500mm
Lift height	>5000mm
Condition	New
Name	2500kg Electric Forklift
Center Distance	500 mm
Axle Unloading,Laden Front/Rear	5857/793mm
Axle Loading,Laden Front/Rear	1859/2246mm
Tyre Size,Front	23X9-10
Height of Mast,Lowered	3000--6000mm
Height,Mast Lowered	2050mm
Height,Mast Extended	4050-7050mm
Seat Height/Stand Height	1040mm
Fork Dimension	40/120/1070mm
Overall Width of Fork	1200 mm
Turning Radius	2180mm
Lifting Speed,Laden/Unladen	0.26/0.3m/S
Battery Voltage/Rated Capacity	48/560(630)Ah
Service Weight(with Battery)	4150kg
Transport Package	Seaworth Packing
Specification	3270 mm*1130 mm*2160 mm
Trademark	MOVMES
Origin	China, Ningbo
HS Code	8427109000
Production Capacity	100 Sets/Month

Packaging & Delivery

Package size per unit product 3310.00cm * 1200.00cm * 2050.00cm Gross weight per unit product 4150.000kg

Product Description

FB25R 2500kg Electric Forklift is similar to YALE

Product details

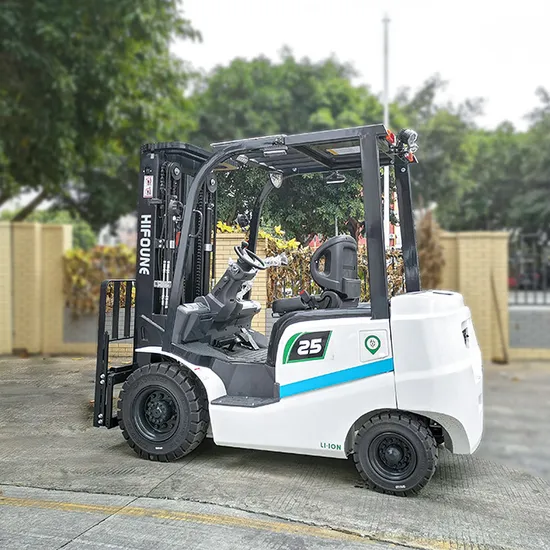

Movmes China Manufacturer 2.5/3.5t/Ton 2500kg 3500kg with Side Shift and Solid Tyres Counterbalance mini Electric Forklift Price for Brand New/Pallet/Manual

Main Configuration	1.) 48V FULL AC Power
	2.) JIACHENG controller
	3.) Pneumatic tyres
	4.) 1070mm Forged fork
	5.) Multiple vavle control
	6.) 48V 500Ah lead-acid battery
	7.) 48V65A charger
	8.) Lifting type battery
	9.) With front LED light,signal light.rear light,safety belt,view mirror,reversing buzzer.

Options	Side way shift--3000mm lifting height
	Side way shift--4000mm lifting height
	Side way shift--4500mm lifting height
	Side way shift--5000mm lifting height
	Side way shift--6000mm lifting height
	Solid Tyre
	Environment-friendly solid tyre
	The fork is lengthened by 100mm each
	Strobe light
	Side-way battery box
	Multiple valve configuration for each additional one spool
	Joy stick arm rest integrated control (3 spools)
	Joy stick arm rest integrated control (4 spools)
	INMOTION controller(48450/35P+350/23P)
	CURTIS controller(1232SE*2)
	48V560Ah Lead-acid battery48V80A charger
	48V630Ah Lead-acid battery48V80A charger
	48V350Ah Lithium battery48V100A charger
	48V400Ah Lithium battery48V150A charger
	48V450Ah Lithium battery48V150A charger
	48V525Ah Lithium battery48V150A charger

Parameter

Model		FB25R(Full AC type )
Power		electric
Operation type		seated
Capacity/rated load	Q(kg)	2000
Load centre distance	c(mm)	500
Lift height	h3(mm)	3000--6000
Load distance,centre of drive axle to fork	X(mm)	445
wheelbase	Y(mm)	1480
Service weight(with battery)	kg	4150
Axle loading,laden front/rear	kg	5857/793
Axle unloading,laden front/rear	kg	1859/2246
Tyre type		Pneumatic/solid
Tyre size,front	mm	23x9-10
Tyre size,rear	mm	18x7-8
Wheels,number front rear(X=driven wheels)		2x/2
Tread,front	b10(mm)	970
Tread,rear	b11(mm)	970
Tilt of mast/fork carriage forward/backward	Grad	5/10
Height,mast lowered	h1(mm)	2050
Height,mast extended	h4(mm)	4050-7050
Height of overhead guard(cabin)	h6(mm)	2100
Seat height/stand height	h7(mm)	1040
Height of traction bolt	h10(mm)	260
Overall length	I1(mm)	3310
Length to face of forks	I2(mm)	2240
Overall width	b1(mm)	1200
Fork dimensions	s/e/l	40/120/1070
Fork carriage DIN 15173,class/type A,B		2A
Fork-carriage width	b3(mm)	1160
Ground clearance,laden,below mast	m1(mm)	110
Ground clearance,centre of wheelbase	m2(mm)	110
Aisle width for pallets 1000x1200 crossways	Ast(mm)	3700
Aisle width for pallets 800x1200 lengthways	Ast(mm)	3900
Turning radius	Wa(mm)	2180
Travel speed,laden/unladen	Km/h	12/13
Lift speed,laden/unladen	mm/s	0.26/0.3
Lowering speed,laden/unladen	mm/s	0.36/0.42
Max.gradeability,laden/unladen	%	13/14
Battery voltage,nominal capacity K5	V/Ah	48/560(630)
Battery weight	kg	820/1055
Driving control system		AC

Advantages:
SAFETY AND STABILITY

1. Improved efficiency most popular H type driving axle,optimized structure layout and improved efficiency.
2. High power and large torque AC driving motor,large diameter body to export large torque,heat radiating groove reserved for better heat texchange in case of extra-long-time use.
3. Multifunctional display with using time ,fault code,battery status,forklift running information.
4. AC driving motor without brush,free of maintenance;low electric current,silent driving.
5. Low gravity center thanks to relocated battery,greatly reinforcing steering stability.
6. Steering circuit preference,to ensure safety in every turn when steering and lifting in the same time,and to save energy.
7. Dual-controller design,one driving controller,the other control steering and lifting.
8. Metal housing for better protection.
9. Full LED light.

ERGONOMICS

1. Optimized stricture creates a large and comfortable operating room,

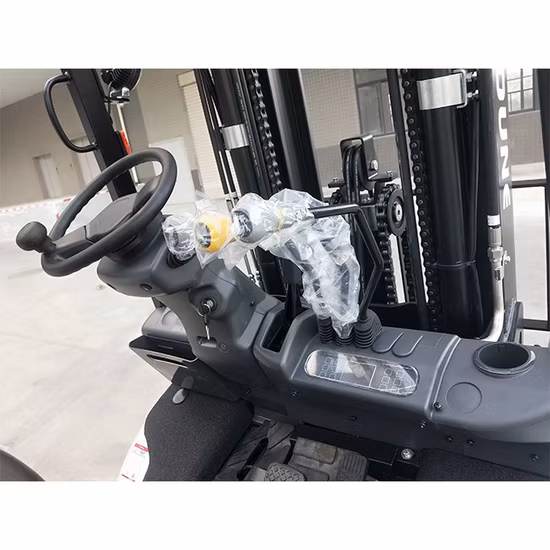

2. Adjustable steering wheel column,the drive can adjust the position according to his need.
3. Integrated light switch and steering wheel .
4. Clear and wide view mast with good visibility.
5. Intelligent mast collapse buffering

SERVICE ABILITY

1. Easy maintained controller and steering potention meter.
2. Brushless lifting and driving motor,reduced cost of ownership;external encoder,easy to replace and service.
3. Over discharge protecting system;while the battery discharge less than 20%,the instrument warming light will turn on .
4. Braking oil cup installed on the instrument panel,convenient to check and add braking oil.

High Praise CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1 EN1175-1 EN16307-1

Related Production

	CQD15 Narrow Aisle Mast fork reach truck1.5ton with 5000-8000mm lifting height,CURTIS controller,48V400AH LEAD-ACID BATTERY
	CPD15S-E,3 wheel electric forklift 1.5ton with 2500-5600mm lifting height ,24V AC power,INMOTION controller,24V320Ah lead-acid battery
	CPD20SA-16/18/201.6/1.8/2.0 ton with 3000-6200mm lifting height.48V AC power,INMOTION controller,48V450AH LEAD-ACID BATTERY .48V50A CHARGER

FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.

Q2: What's the specification of the chargers of electric forklift?

A2: Our chargers 48V500AH Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.

Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.

Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
